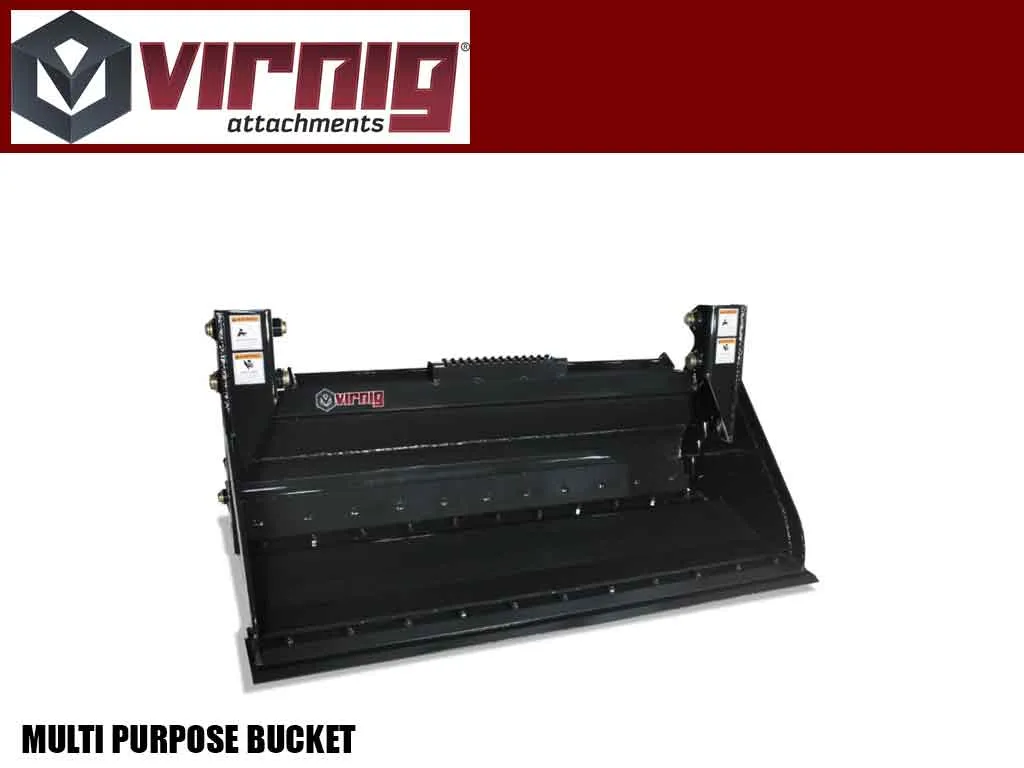

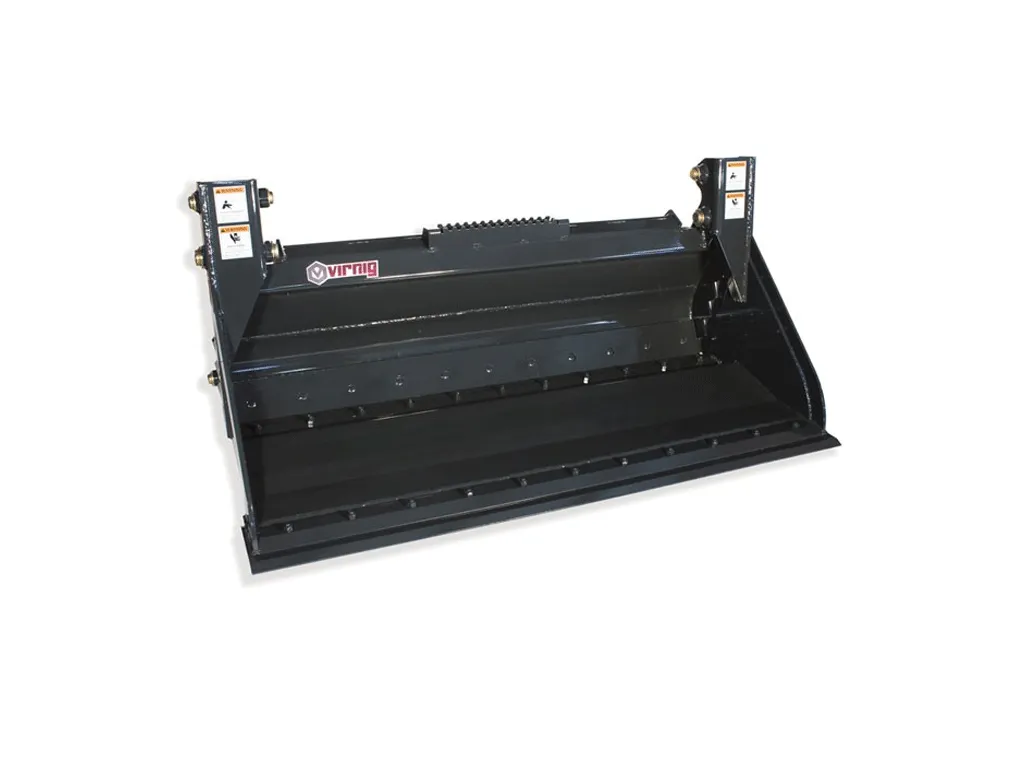

DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS, CYLINDERS & FITTINGS
Multiple functions in one attachment to save time and money.

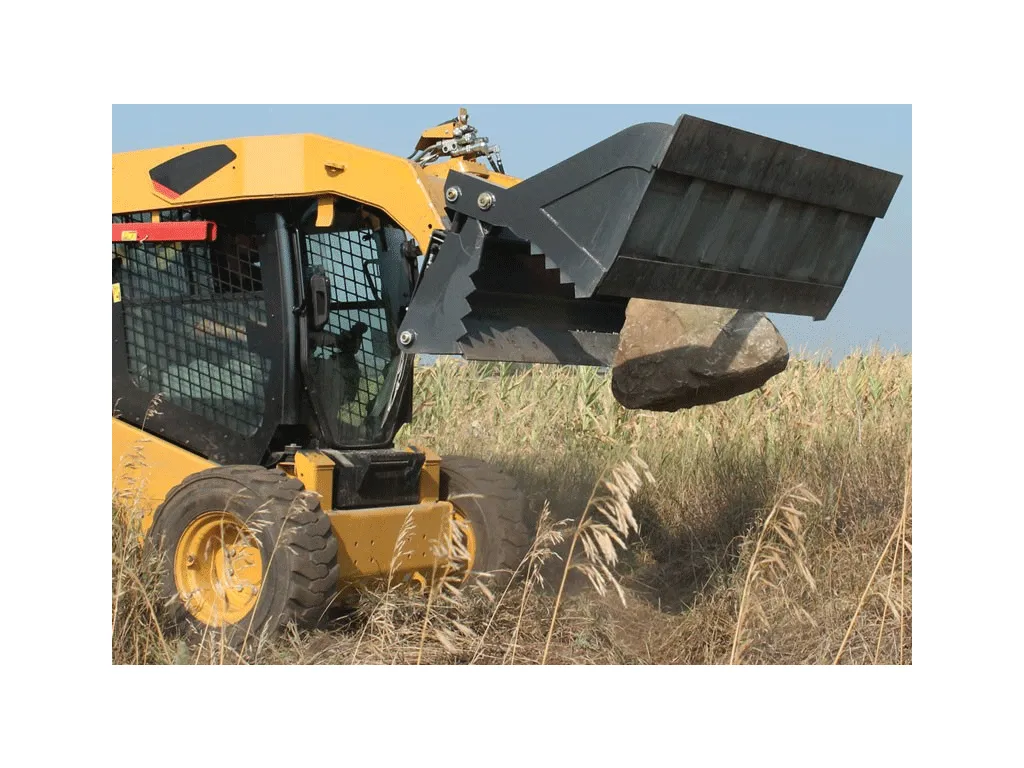

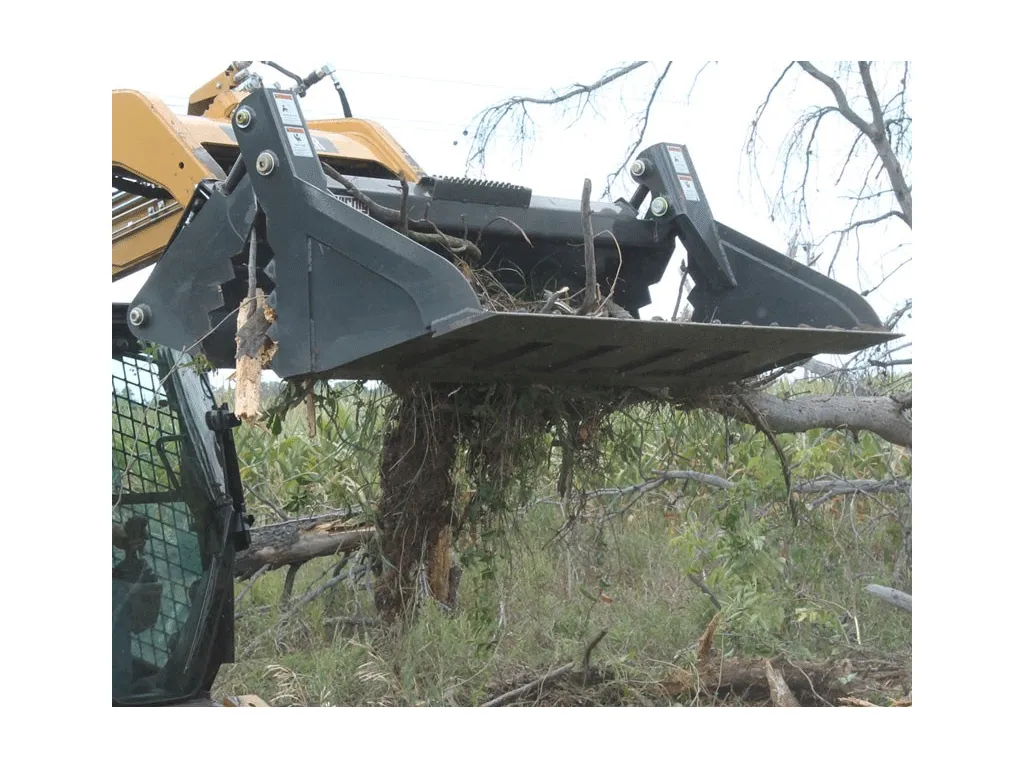

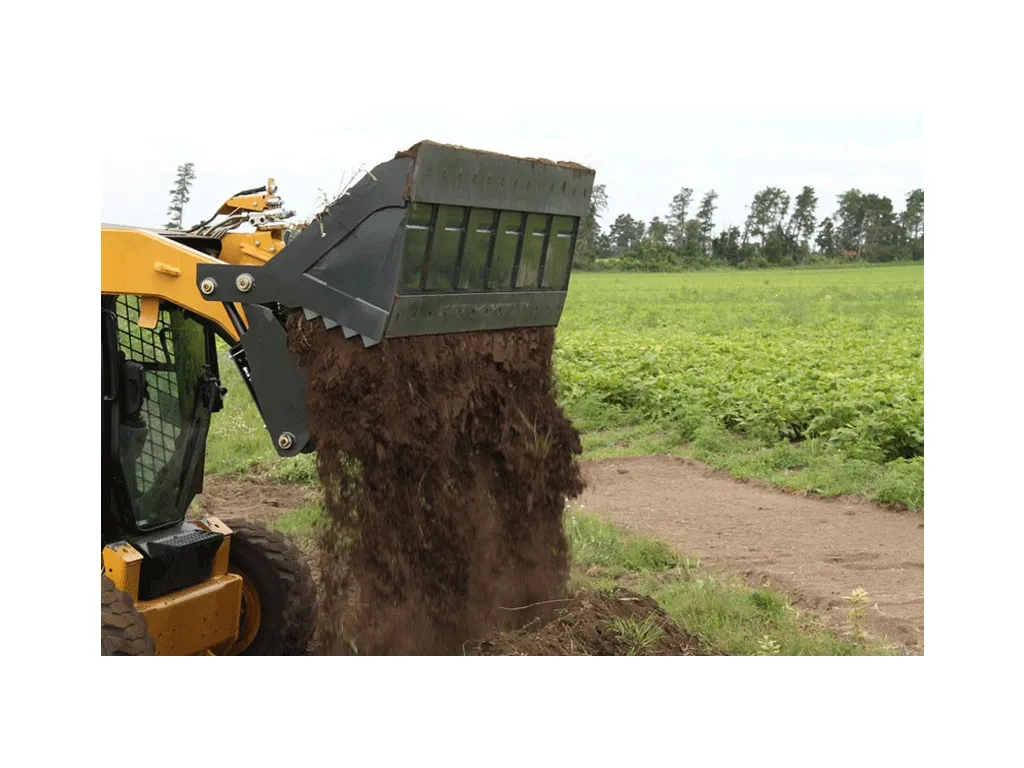

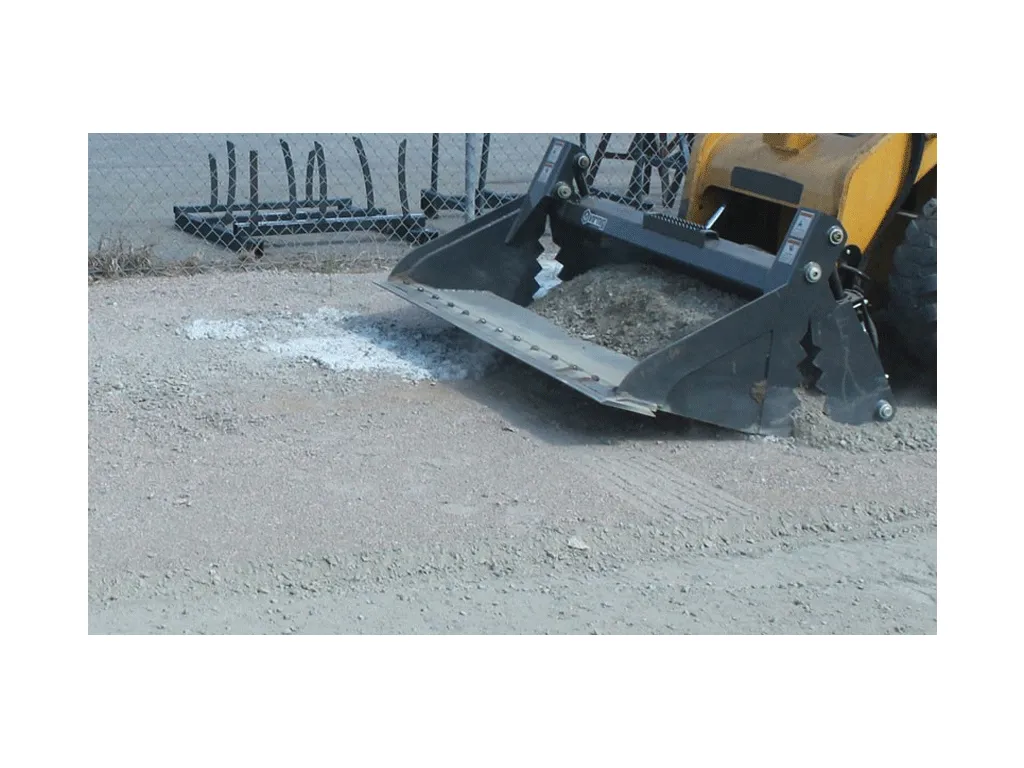

- Functions include dozing, clamming, leveling, and bottom dumping.

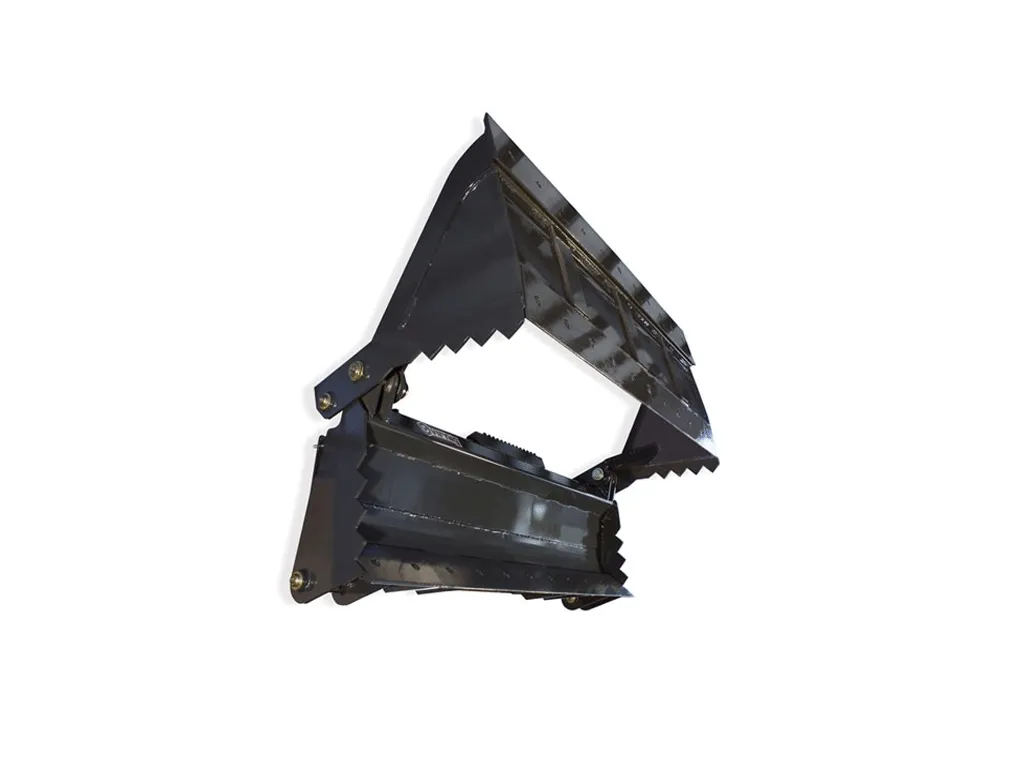

- Large 33” opening for easier, more efficient operation.
- Design provides effective dozing, while maintaining maximum visibility.
- 5/8″ x 6″ reversible, replaceable bolt-on edge at rear of clam and front of dozer.
- ¾” x 6” weld on edge on front of bucket accepts optional edges.
- Corrosion, dent and flake resistant NitroSteel® cylinder rods made in the USA. Cylinder Guards standard.
- A heavier duty V60 Mulit-Purpose Bucket also available.
- Commonly called a 4-in-1 bucket.
- Bolt on Cutting Edge (BOCE) installed
- Extends life of bucket.
- Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
- Serrated Edge (SE) installed
- Excellent alternative to toothbar for chiseling and breaking up soil.
- Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.
- Weld-on Teeth (WOT) installed
- Replaceable Series 23 cast teeth with cast shank, welded directly to the bucket edge.
- Excellent for breaking up compact soil.
Optional Side Cutters - Call for info and pricing
- Reversible - only one in industry.
- Improves performance in hard compacted soils.
- Cast steel lengthens life of bucket sides.
- Not compatible with Toothbars.
Optional Holding Valve - Call for info and pricing
- When external loads are applied, the valve increases the holding force of the hydraulic cylinders.
- Works with all Virnig Multi-Purpose Buckets.
SPECIFICATIONS
| Model | MPV 60 | MPV 66 | MPV 72 |
| Overall Bucket Width (Inches) | 61.5 | 67.5 | 73.5 |
| Bucket Depth: Overall / Inside (Inches) | 37.0 / 28.6 | ||
| Bucket Height (Inches) | 21.3 | ||
| Dozer Width (Inches) | 59.9 | 65.9 | 71.9 |
| Clam Opening (Inches) | 33.0 | ||
| Shell Thickness (Inches) | 0.25 | ||
| Hinge Structure Thickness (Inches) | 0.375 | ||
| Cylinder Bore / Stroke (Inches) | 2.5 / 8.375 | ||
| Cylinder Pins / Hinge pins Diameter (Inches) | 1.25 / 1.563 | ||
| Structural Wear Bars Under Bucket (1/2″ x 4″) | 3 | 3 | 3 |
| Approximate Weight (Pounds) | 840 | 915 | 960 |
| Recommended Loader Capacity | Less than 2400 pounds | ||
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
